Product parameter

Intelligent cleaning robot
the size of robot503*503*629 mm
product weight40KG
sensor3D lidar、2D obstacle avoidance radar、
ultrasonic、TOF camera
navigation system3D multi-line laser+IMU+milemeter
Multi-sensor fusion navigation
obstacle avoidance system3D multi-line laser+2D single line laser+color camera+TOFcamera+ultrasonic
running speed 0.1~1m/s,the gear is adjustable
water/sewage capacity10L/10L
clean width440mm
downward pressure of the roller brush20~40N
clean modecleaning,vacuuming,and pushing dust
the way of workRegular cleaning, one key cleaning, remote control cleaning
clean efficiency1200㎡/h
batterylithium iron phosphate,1KW.h(replaceable battery)
charging/Battery life3 hours full, 5-12 hours endurance
the size of viewing screen7inches
network4G/wifi
control softwaremobile APP/Robot key control/online control

Product function

Intelligent planning scenario

Independent mapping, update, automatic path planning, real-time coverage, flexible response to complex scenarios

Autonomous navigation to avoid obstacles

Driverless multi-sensor autonomous navigation, intelligent perception obstacle avoidance, collision avoidance and anti-fall system multiple protection, safe and reliable

Regular +combination cleaning

Set cleaning time in advance, multi-area combination, intelligent scheduling, and truly unmanned operation

disposable cleaning

Support rolling brush to push dust and wash the ground, dry and wet garbage once cleaning, solid-liquid separation, say goodbye to tedious

Intelligent adjustment of cleaning strength

Automatically adjust the cleaning intensity with the stain weight, dust, particles, heavy dirt easily wash

Cross-position operation

Support customized autonomous using a lift, multi-floor cross-position continuous cleaning

Real-time self-cleaning

Intelligent detection of stain residue, no need to manually disassemble, deep self-cleaning

Automatic recharging, breakpoint continue

Automatic return charging when the power is below the minimum value, cleaning task breakpoint continue to sweep, to ensure the integrity of the work and continuous cleaning

Freely choose voice control, touch screen control, app control

choose voice command control and real-time voice prompt, touch screen control and mobile APP control

Remote intelligent monitoring

Network intelligent monitoring and early warning, remote task scheduling, real-time data transmission,the device configuration is upgraded online

Intelligent cleaning robot

The intelligent cleaning robot is a commercial cleaning equipment that integrates cleaning, vacuuming, and pushing dust, and can realize 24-hour uninterrupted cleaning operations. With efficient self-cleaning capabilities, with full-function base stations, can achieve automatic recharge and self-cleaning, minimal maintenance, with convenient mobile terminal operation software, commercial cleaning intelligent selection, can be widely used in hospitals, shopping malls, campuses, exhibition halls, office buildings, terminals and other places.

Online update

The robot is constantly adapted to the scene and constantly updated

Intelligent cleaning

It integrates washing, vacuuming, pushing dust, self-charging, self-cleaning, conveniently drain the sewage and fill the clean water

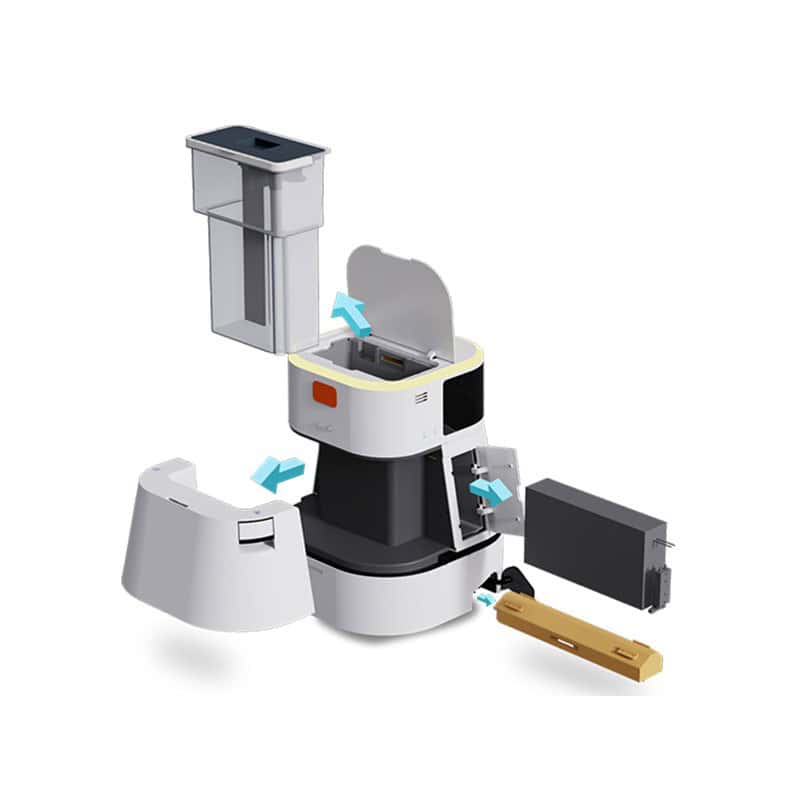

Minimal maintenance

Rolling brush, clean water tank, sewage tank quick disassembly design, simple cleaning and maintenance, replaceable battery, fast recharge

Multiple modes of use

Voice control +APP+ remote scheduling software integration, rapid deployment, minimal use

  • Multi-sensor tight fusion technology, driverless navigation and positioning
  • Indoor and outdoor universal, smart travel without obstacles
  • Bow type cleaning path design, no duplication, full coverage, accurate welt cleaning mobile APP+ remote scheduling dual system rapid deployment, flexible use
  • Support autonomous ladder, multi-task cross-zone cleaning
  • Timing reservation function, automatic cleaning, easy to use
  • dry and wet dual motor, strong cleaning power
  • Multiple obstacle avoidance, collision avoidance, anti-fall design, accurate identification of the surrounding environment
  • Cleaning speed up to 0.8m/s, multi-gear adjustable
  • Water tank, cleaning module, battery quick disassembly design, simplify work, convenient maintenance
  • Large laser mapping, to meet the use of large scenarios
  • 1KW.h magazine-type replaceable battery, fast recharge
  • Low power automatic return charge, breakpoint continued sweep
  • User rights authentication and identity management
  • Intelligent reminder of equipment maintenance, breakdown, and consumable replacement

Bow type clean path design

Automatic full coverage cleaning, for the corner area to achieve accurate edge cleaning, to ensure the standardization of cleaning operations, accurate and controllable.

Autonomous obstacle avoidance and collision avoidance system

3D multi-line laser +2D single-line laser + camera + ultrasonic + anti-drop sensor, multiple obstacle avoidance, collision avoidance, anti-fall design, accurate identification of the surrounding environment, stable and safe operation.

Indoor and outdoor navigation positioning

Based on 3D multi-line laser + vision + IMU + range meter multi-sensor fusion navigation and positioning algorithm, unmanned level safe and reliable.

Intelligent motion control

The motion control based on deep reinforcement learning can ensure the smooth movement of the robot in the highly dynamic complex environment with dense and large flow of people.

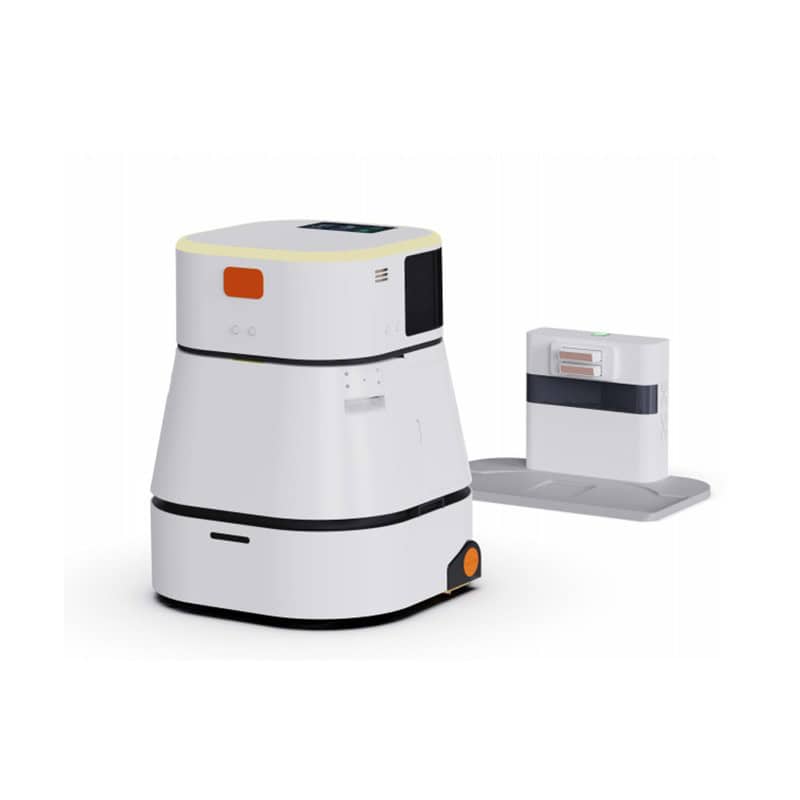

Automatic return charge

Low power automatically return to the charging pile, after full power can be broken to continue washing, without manual intervention and repeated work, to ensure efficient and complete work.

Digital monitoring to assist decision-making

Mobile APP+ remote scheduling dual system deployment, digital monitoring of the whole process of the job, intelligent statistical analysis of robot operation data, assist in optimizing the cleaning operation plan.

Interactive reminder

Screen display, voice, APP triple prompt, automatically remind to clean the sewage tank, clean the cleaning module, replenish water, replace consumables and charge.

Remote monitoring and maintenance

Online real-time monitoring of all robot operation data in the cloud can provide early warning and report abnormal situations in advance, ensuring timely response and quick solution of problems by maintenance personnel.

Intelligent cleaning design

Special polymer material rolling brush, no damage to the ground; Running water cleaning system, while suction mop, while self-cleaning; Intelligent sensing dirt, one key automatic cleaning, no cleaning, no odor, really clean.

Real-time data synchronization

Support multi-robot cloud map sharing, real-time data synchronization is new, easy to quickly match, deployment, scheduling and maintenance, to meet a variety of complex scenarios.

Real-time self-cleaning

Real-time self-cleaning, deep cleaning: Intelligent detection of stain residues, no manual scrubbing, you can achieve deep cleaning, so that your floor is always clean with the best robot cleaner.

Timing + combination cleaning

Intelligent timing, regional combination: support to set cleaning time and multi-regional combination cleaning, intelligent scheduling, truly unmanned operation, making cleaning easier and more efficient.

Automatic recharge, breakpoint continuation

Automatic recharge, perfect endurance: When the power is below the minimum value, the robot will automatically recharge, and the cleaning task will continue to sweep, ensuring that every cleaning can be perfect.
